Paladin fencing

Name: Paladin fencing
Brand: LNF-358 Fencing
Price: 16.88 USD

Brand Name : LNF-358 Fencing

Model Number : Clearvu 358 Wire Mesh Fence

Certification : ISO

Place of Origin : China

MOQ : 100 liner meter

Price : 16.88$-28.66$ per liner meter

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 liner meter per month

Delivery Time : 14 work days

Packaging Details : Pallet

Type : Fencing,Trellis & Gates,Welded Mesh

Feature : Easily Assembled,Eco Friendly,Waterproof,Renewable Sources,Rodent Proof

Metal type : Steel,Iron,High quality carbon steel wire,Low carbon steel

Frame material : Metal

Frame finishing : Powder Coated,PVC Coated,Hot dipped galvanized,galvanized

Pressure treated wood type : Heat Treated,Nature,Chemical

Product name : 358 Welded Mesh Fence,factory galvanized steel wire welded panel 358 fence,prison 358 fence,factory direct supply cyclone wire fence price philippines

Color : green,blue,Black,yellow

Material : Galvanized Iron Wire,Low-Carbon Iron Wire,Low Carbon Steel Wire,High quality carbon steel wire,PVC coated wire

Surface treatment : Galvanized+PVC Coated,Hot Dipped Galvanized,PVC Coated,PVCcoated,Galvanized/Powder Coated/PVC coated

Application : Fence Mesh,Construction Wire Mesh,Prison,Protecting Mesh,District guardrail

Wire diameter : 4.0mm,etc

Height : 1.8m,3m,2.4m,2m,3.0m

Width : 0.5M----3.0M

Packing : Pallet,Plastic film& wooden pallet,Skecth film paper and pallet,In Rolls or Sheets

Wire gauge : 3mm,3mm - 6mm,2.0mm,3-5mm,3.0-4.0mm

Usage : Protection,Anti-climbing,house,Prison wire mesh fence

Hole shape : Square,rectangle

Length : 2.0m,Customized

Contact Now

Paladin Fencing is an original striped welded mesh fence with an innovative and unique aesthetic appearance. It has the features of high strength and security; It is an anti-climbing fence, anti-cutting, and faster installation. Paladin Fencing panel as a decorative mesh panel has extra vertical wires and a crimped panel design. With pressed 'V' forms containing additional 4 mm diameter wires for the entire panel width, paladin mesh fencing offers a rigidity anti-intruder barrier solution.

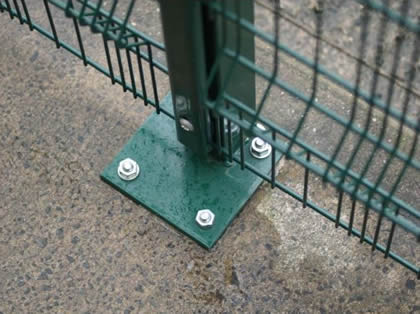

Paladin mesh fencing in green plastic coating	The square post and post base of paladin fencing

Common type Specifications (as above pictures Shown):

Width of the panel: 2500 mm or 3025 mm.
Height of the panel: 900 mm to 2400 mm.
Spike to top edge: 30 mm.
Mesh pattern: small 12.5 × 50 mm and large 50 × 50 mm, welded at each intersection. This mesh size ensures good visibility through the fence, while the wire provides a high level of rigidity.
Horizontal wires: 3 mm diameter at 50 mm centers with an additional 4 mm diameter in the 'V' beams.
Vertical wires: 3 mm diameter at 50 mm and 12.5 mm centers.
0.9 m / 1.2 m / 1.8 m panels have 2 'V' forms, 2.0 m / 2.4 m panels have 3 'V' forms.
Surface treatment: plastic coated with green color. The thickness of powder-coated is 80-100 microns.
Fence post size 60 × 40 mm, 60 × 60 mm and 80 × 60 mm with a plastic cap or metal cap.
Fencing Clamps: plastic clamp or metal clamp.

Another type of fence mesh is 20 mm × 200 mm /43.7 mm × 200 mm, wire 4 mm (verticals), 5 mm (horizontals). Shown as the right picture below.

Parameters Paladin Fencing


Fence Height	Panel Size	Beams	Inter clamps	Corners Clamps
900 mm	925 × 3025 mm	2	3	6
1200 mm	1240 × 3025 mm	2	4	8
1800 mm	1850 × 3025 mm	2	5	10
2000 mm	2000 × 3025 mm	3	6	12
2400 mm	2440 × 3025 mm	3	7	14
Post	60 × 60 × 2.00 mm and 60 × 80 × 2.5 mm

Application of paladin mesh fence

Paladin fencing panels are recommended as security fencing for private estates, residential areas, housing, farms, gardens, industrial areas, sports facilities, parks, schools, playgrounds, sports fields, airports, utilities, public buildings, sports arenas, marinas, warehouses, factories.

Paladin fencing mesh opening small 12.5 × 50 mm and large 50 × 50 mm	fence mesh opening 20 mm × 200 mm / 43.7 mm × 200 mm
